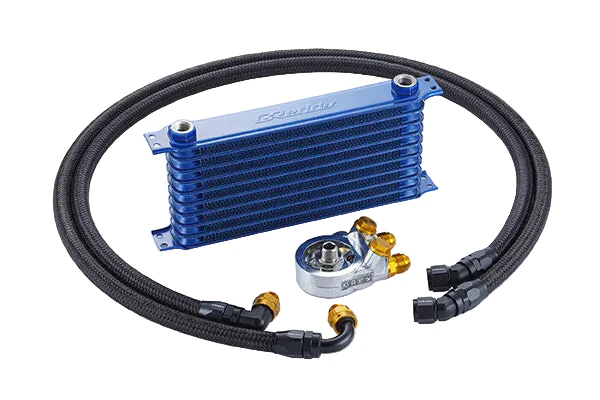

OIL COOLER KIT NS1010G/STD JDM FK8 Civic - (12054613)


Oil cooler kit STD 10row for JDM FK8 Civic Type-R

Product Features

• This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1010G
• Thermostat: Built-in block

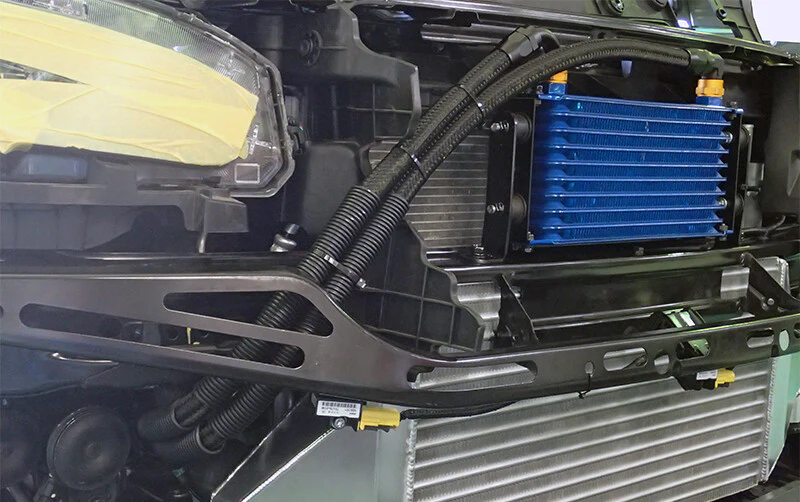

• Core installation position: under engine
• Center bolt size: M20 x P1.5

Compatible models: HONDA CIVIC

• Vehicle model: FK8 Civic Type-R
• E/G model: K20C
• Year: 17.03 ~
• CODE: 12054613

Remarks

• Cannot be installed on VGS (Variable Gear Steering) vehicles.
• Engines with center bolt M20 x P1.5  require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
• Undercover processing required.
