OIL COOLER KIT NS1010G AP1/2 CIRCUIT-SPEC - (12054609)

Oil cooler kit circuit spec 10row for AP1/AP2

Product Specifications

• Core type: NS1010G
• Thermostat: Built-in block

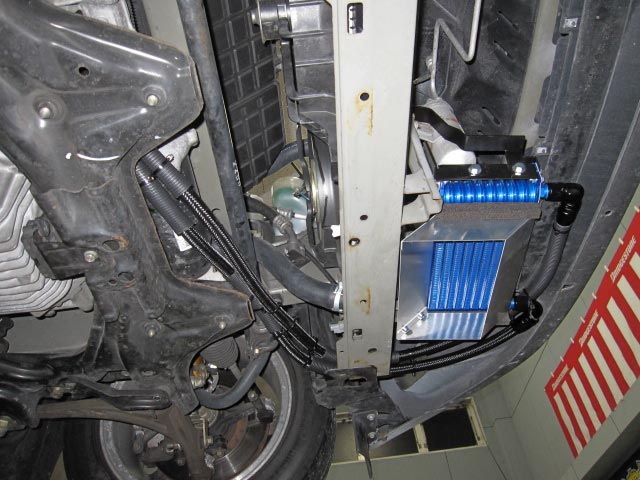

• Core installation position: In front of the radiator (horizontal)
• Center bolt size: M20 x P1.5

Compatible models: HONDA S2000

• Vehicle model: AP1/AP2
• E/G model: F20C/F22C
• Year: 1999.04~2009.06
• CODE:12054609

Remarks

• Engines with center bolt M20 x P1.5 require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
• Cutting of the under cover is required.
• Cannot be installed on vehicles equipped with T/K.

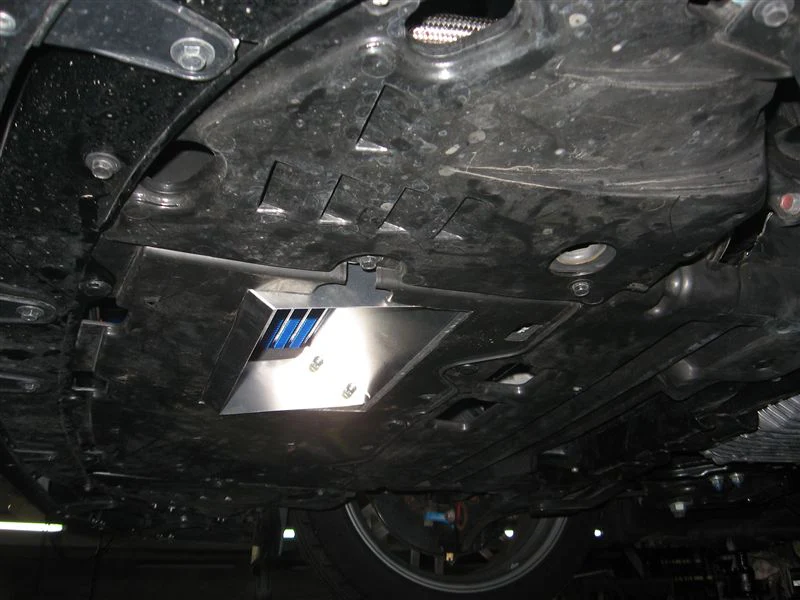

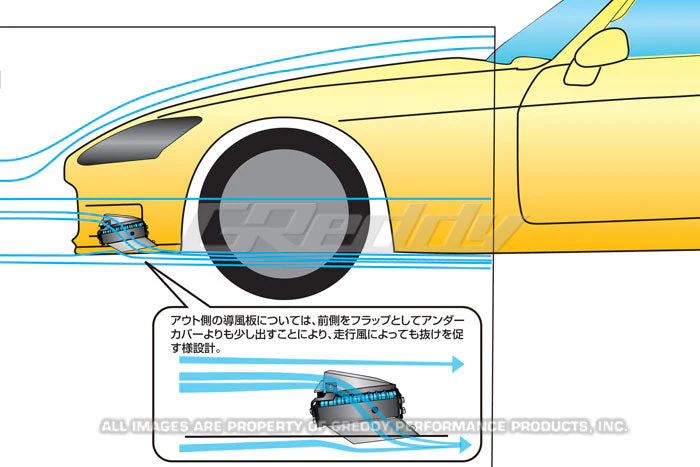

• Air guide plate included.
