GREDDY INTERCOOLER KIT T-24F CT9A EVO 9 - (12030202)



Lancer EVO CT9A (9)

4G63 05.03～07.09

INTERCOOLER KIT

TYPE24E H284/L600/W66

In front of the radiator

12030202

GReddy intercooler kit for CT9A (IX)

Sports turbine ~ Full tune class recommended Intercooler that demonstrates high cooling efficiency

Product features

• Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.
• The SPEC-R HG has side tanks and aluminum pipes buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.
• The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."
• Optimized pressure loss and cooling effect to support high-level high boost tuning.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

Specification

• Core type: TYPE24F
• Core size: h184/L600/W66

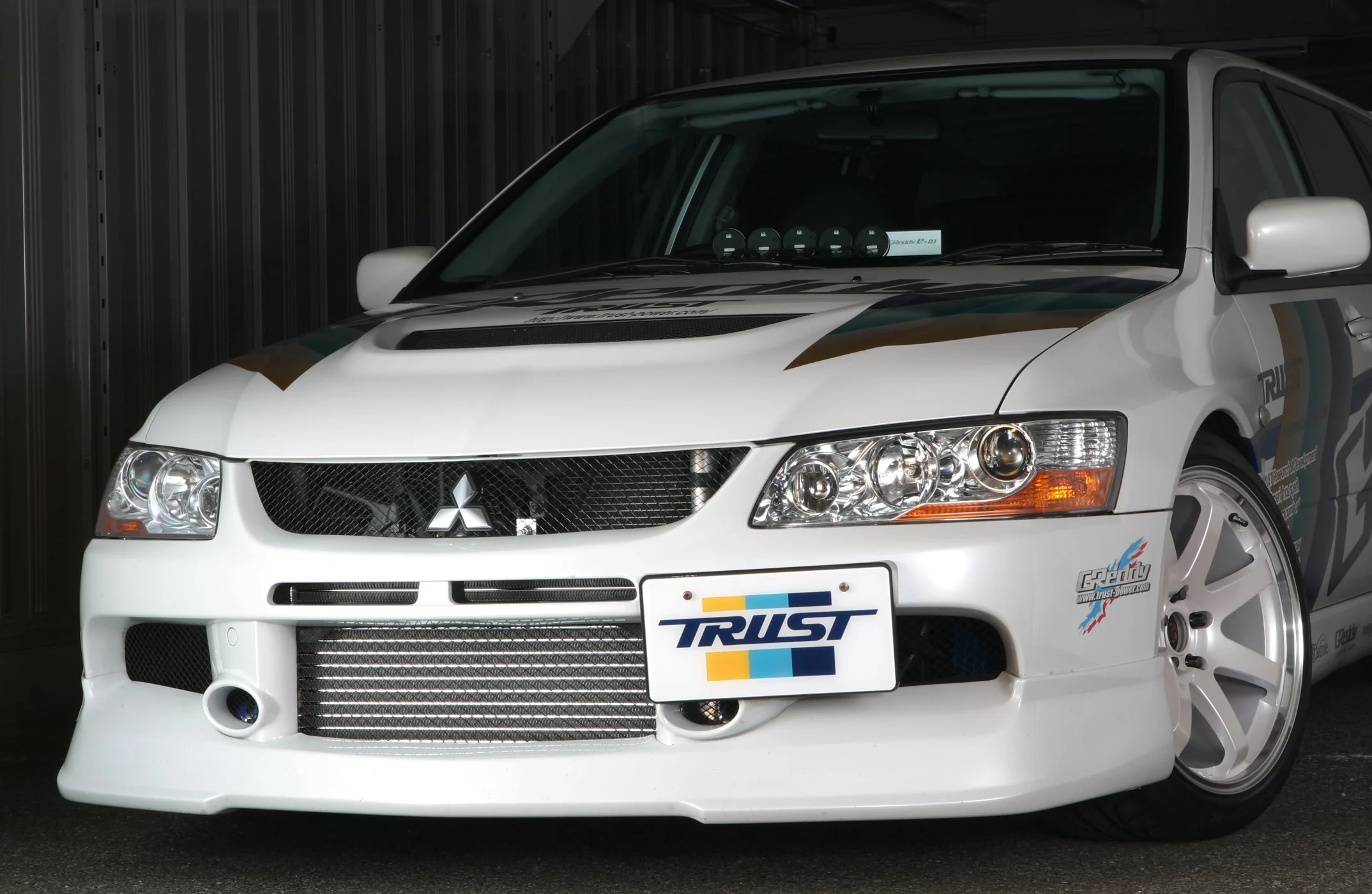

• Installation position: In front of the radiator

Compatible model: Lancer EVO

• Compatible model: CT9A (9)
• Year: 05.03-07.09
• CODE:12030202

Remarks

• Compatible with genuine turbine & GReddy turbine kit.
• For MT cars only.
• * O/C kit can be installed at the same time
• * Pipe SET can be installed at the same time
