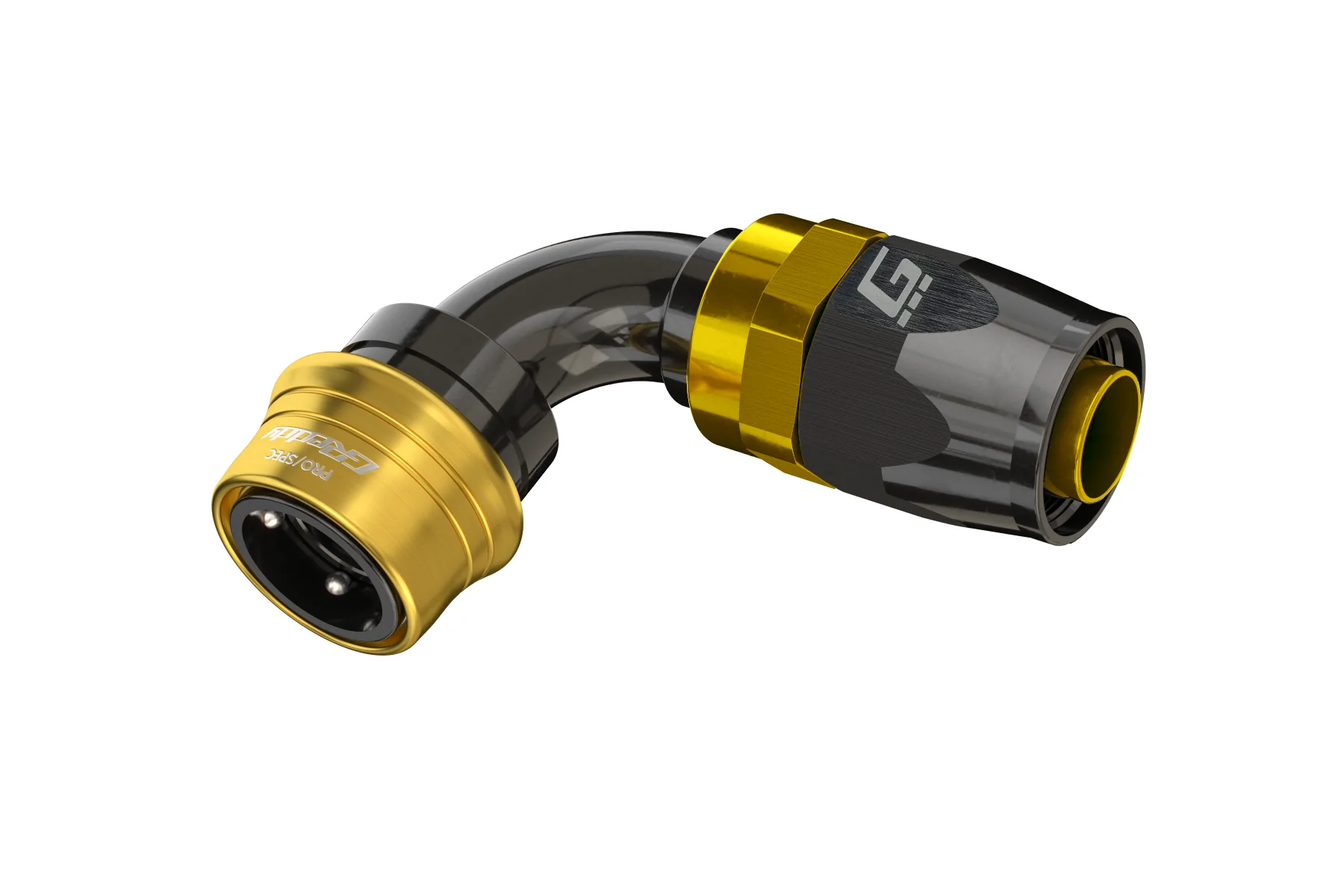

GREDDY PRO/SPEC 90 DEG. QUICK-RELEASE HOSE END(s) - BLACK/GOLD - (12860490 12860690 12860890 12861090 12861290 12861690 12862090)

 -04 to -20 GReddy PRO/SPEC 90deg.

Crafted from billet 6061 aluminum, these 90 Degree GReddy PRO/SPEC Swivel Hose End Fittings offer ultimate service convenience, unparalleled durability and performance. *Our unique left-hand threaded hose nut allows for quick and easy hose seating, making these fittings a top choice in the market.

 $39.00   12860490 - 04 Pro/Spec 90 deg. swivel
 $43.50   12860690 - 06 Pro/Spec 90 deg. swivel
 $48.50   12860890 - 08 Pro/Spec 90 deg. swivel
 $52.00   12861090 - 10 Pro/Spec 90 deg. swivel
 $52.50   12861290 - 12 Pro/Spec 90 deg. swivel
 $59.00   12861690 - 16 Pro/Spec 90 deg. swivel
 $86.50   12862090 - 20 Pro/Spec 90 deg. swivel

•  REQUIRED MATCHING FITTING: [GReddy ORB Male to PRO/SPEC], [GReddy Weld-on to PRO/SPEC], [GReddy male AN or GReddy female AN to PRO/SPEC] or [GReddy Male NPT to PRO/SPEC] Adapters *sold separately
  All PRO/SPEC™ B-Type fittings require a matching PS-size adapter for your specific port.  Ensure you select the correct adapter (e.g., a PS10 fitting requires a PS10 adapter, equivalent to AN10).


• GReddy Nylon Braided Hoses are recommended for GReddy Fittings.
• Also available in other Straight, 30deg, 45deg, 60deg, 90deg, 120deg, 150deg and 180deg angles.
• U.S. & International Patents Pending.

GReddy PRO/SPEC™ 30° Quick Release Hose Ends provide secure, one-handed connection and easy removal without tools. Featuring dual seals and a bright locking band, they ensure leak protection and visible engagement. Designed for tight spaces, they eliminate wrench use during hose service. Tested up to 10,000 PSI and extreme conditions, these fittings reliably support fuel, oil, air, and coolant systems with added safety from a secondary lock.

These GReddy PRO/SPEC hose end features a strong forged 6061-T6 aluminum body with black anodizing for durability and corrosion resistance. Its 180° swivel allows easy hose routing in tight spaces and adjustable alignment after crimping. Dual FLUOROK™ FKM seals provide heat and chemical resistance up to 205°C, ensuring leak-free connections. The reusable compression design lets you assemble and service hoses without special tools. Replacement kits are available to maintain fitting performance over time.

GReddy PRO/SPEC™ B-Type fittings are designed to work best with GReddy Nylon-braided lines. While they may fit hoses from other brands, performance with those combinations is not guaranteed. The FLUOROK™ FKM seals are compatible with common fuels like gasoline and ethanol, as well as motor oil, gear oil, transmission oil, coolant, and air, rated for continuous use up to 205°C (401°F).

These hose ends are not compatible with methanol or nitromethane fuels. For those fuels, use Dyme PSI PRO/SPEC HM-Type (METHODEX™ seals), HX-Type (DYMAX-F™ seals), or FATBOY H-TYPE AN fittings. Size cross-compatibility: PS06/AN06 fits SAE J2044 3/8" barbs, and PS05/AN05 fits 5/16" SAE J2044 barbs. PS sizes match AN sizes for selection and flow purposes.
