The Story
13551101 - D16Z Lower Compression Metal Head Gasket
Engine: Honda D16Z
Bore Size: 76mm
Thickness: 2.0mm
SOHC VTEC, EG4 CIVIC

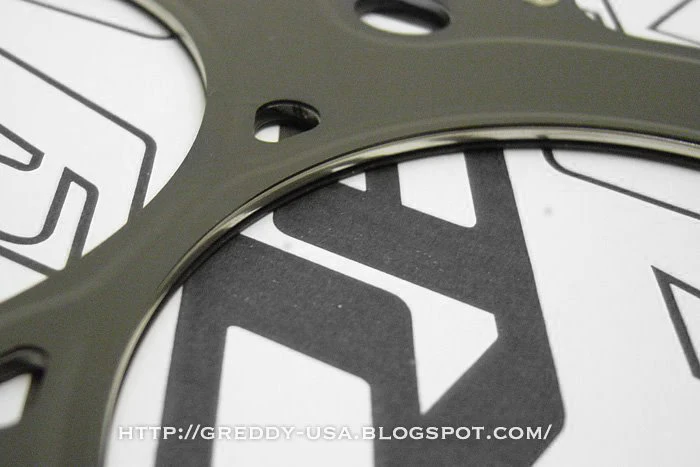

13551300 - K20A Lower Compression Metal Head Gasket
Engine: Honda K20A
Bore Size: 87.0mm
Thickness: 2.5mm
DOHC i-VTEC, DC5 INTEGRA, EP3 CIVIC
With higher boost pressure comes increased horsepower, this means increased cylinder pressure. These special metal reinforced Head Gaskets are available in various thickness to lower compression levels and help withstand the extreme temperature and cylinder pressure of an ultra-high output engine.
GReddy Metal Head Gasket
Ensures high surface pressure and prevents combustion gas pressure from escaping.
Product features
High surface pressure is ensured by using a grommet type. Prevents combustion gas pressure from escaping due to high boost.
Specification
■Grommet type metal head gasket
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
13551101 - D16Z Lower Compression Metal Head Gasket
Engine: Honda D16Z
Bore Size: 76mm
Thickness: 2.0mm
SOHC VTEC, EG4 CIVIC
13551300 - K20A Lower Compression Metal Head Gasket
Engine: Honda K20A
Bore Size: 87.0mm
Thickness: 2.5mm
DOHC i-VTEC, DC5 INTEGRA, EP3 CIVIC
With higher boost pressure comes increased horsepower, this means increased cylinder pressure. These special metal reinforced Head Gaskets are available in various thickness to lower compression levels and help withstand the extreme temperature and cylinder pressure of an ultra-high output engine.
GReddy Metal Head Gasket
Ensures high surface pressure and prevents combustion gas pressure from escaping.
Product features
High surface pressure is ensured by using a grommet type. Prevents combustion gas pressure from escaping due to high boost.
Specification
■Grommet type metal head gasket
