GReddy low-profile proprietary M18 x P1.5 O-ring direct -10 male Swivel Hose End(s) - Black / Gold anodized

USE THE PULL-DOWN MENU ABOVE TO SELECT ANGLE, THEN ADD TO CART ^

Specialized low-profile JDM-spec. M18xP1.5 O-ring direct hose-end fitting for GReddy Oil Blocks and Oil Cooler Cores

* [low profile, eliminates GReddy -10 M18xP1.5 O-ring AN fittings (12005103)]
     Available in straight, 30, 45, 90, 120, 150deg sizes

Click Here for  GReddy 10 Nylon Hose

 12402150- GReddy -10  M18xP1.5 O-ring Straight Fitting - (1x)

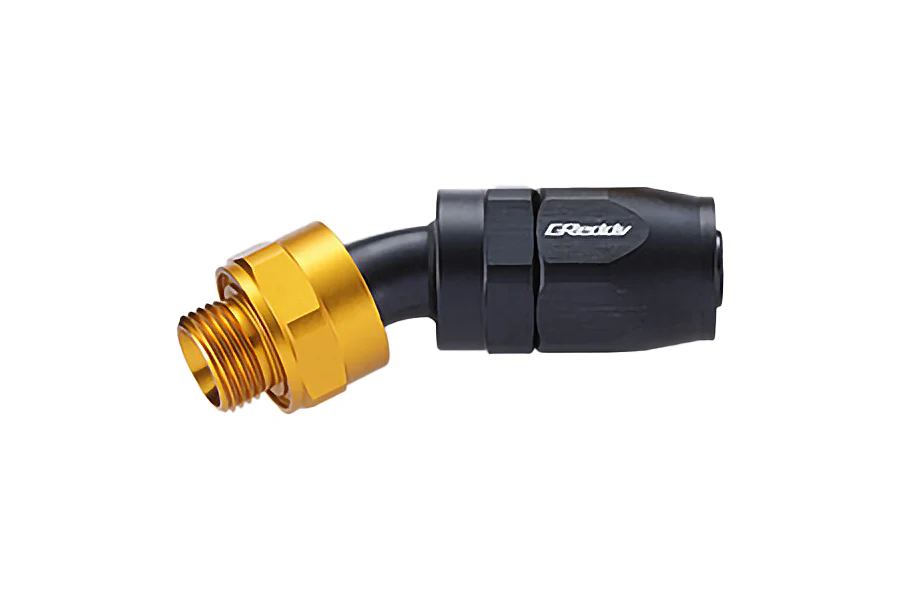

 12402151 - GReddy -10  M18xP1.5 O-ring 30deg. Swivel Fitting - (1x)

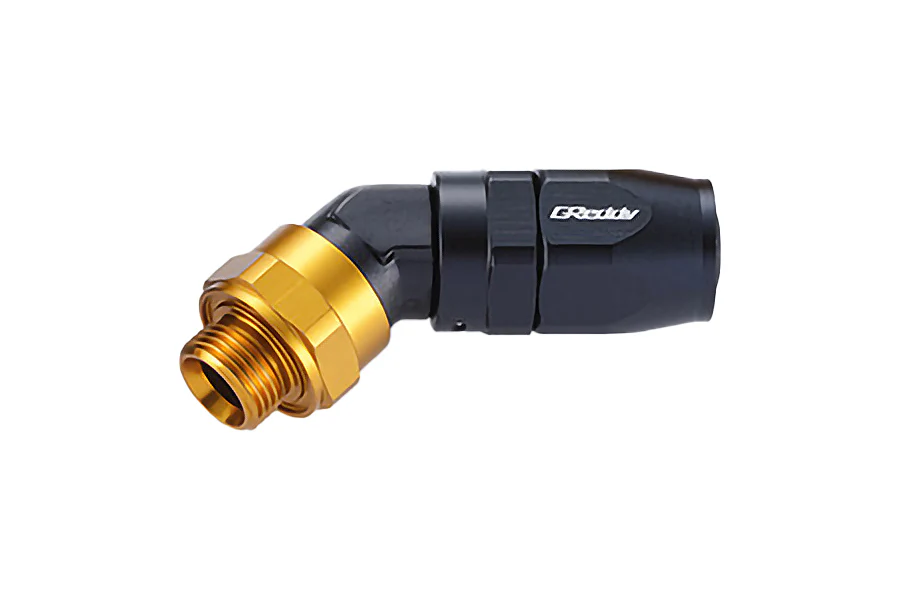

 12402152 - GReddy -10  M18xP1.5 O-ring 45deg. Swivel Fitting - (1x)

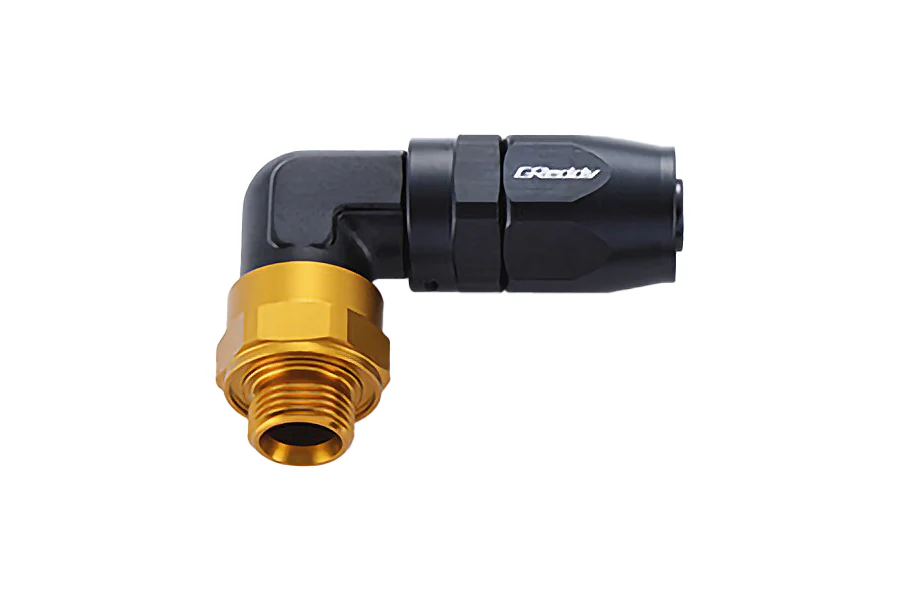

 12402153 - GReddy -10  M18xP1.5 O-ring 90deg. Swivel Fitting - (1x)

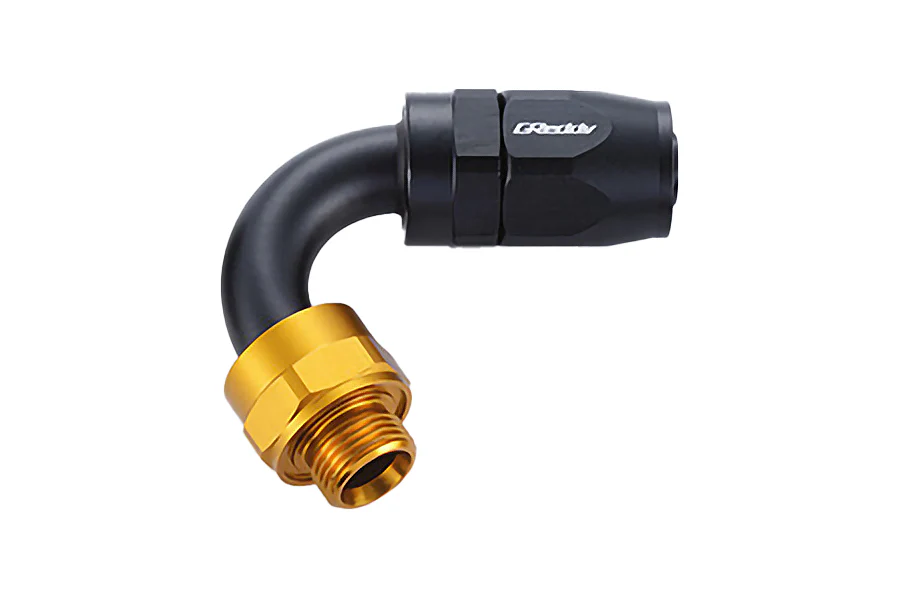

 12402154 - GReddy -10  M18xP1.5 O-ring 120deg. Swivel Fitting - (1x)

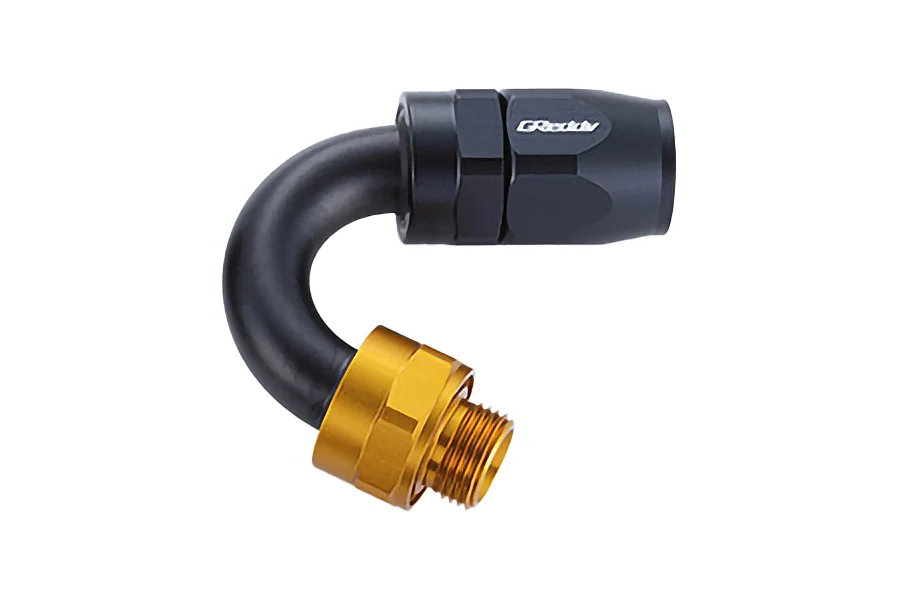

 12402155 - GReddy -10  M18xP1.5 O-ring 150deg. Swivel Fitting - (1x)

( Standard GReddy M18xP1.5 O-ring AN fittings  -08  -10  -12 )

Product Features

◆Height reduced by up to 22 mm by making the mounting part and fitting into one structure, the height is reduced, and space is secured.

◆Reduced parts costs...By simplifying the configuration (integrated structure), the number of required parts has been reduced from two (AN adapter + fitting) to one (direct fitting only).

◆Swivel mechanism: The mounting part (adapter: M18 x P1.5) has a swivel mechanism and uses a double O-ring to prevent oil leakage.

Specification

- Black anodized (with GReddy logo)
- Mounting part is M18 x P1.5 (gold anodized)
- Swivel mechanism of mounting part is double O-ring specification
- * JDM-spec, Lock nut does not utilize the left-hand -thread hose seating feature
